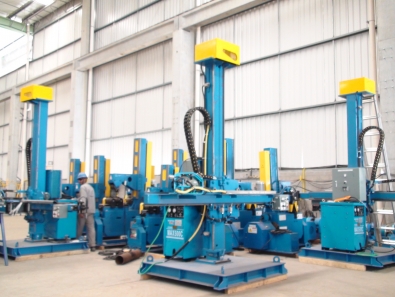

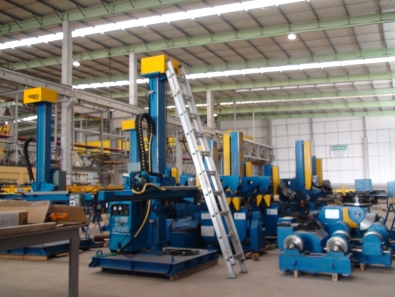

SPECIFICATION
|
MODEL |
SK-MAN 2000 |
SK-MAN 6000 |
|
HOISTING STROKE |
2000 MM |
5000 MM |
|
HOISTING SPEED |
1830 MM/MIN |
1993 MM/MIN |
|
BOOM STROKE |
2000 MM |
6000 MM |
|
BOOM SPEED |
MAX. 2260 MM/MIN |
MAX. 2015 MM/MIN |
|
COLUMN ROTATION ANGLE |
± 180˚ |
± 180˚ |
|
COLUMN ROTATION METHOD |
MANUAL |
MANUAL |
|
전원 |
380V X 60HZ X 3PH |
380V X 60HZ X 3PH |
|
HOIST PART |
MOTOR |
AC 0.4KW X 4P B/K |
AC 1.5KW X 4P B/K |
|
REDUCER |
SI - U80L - 1/60 |
DWBM135-A-1/200 |
|
FEEDING |
TIMING PULLEY |
14L 075-6F |
SPUR GEAR |
28Z/94Z |
|
TIMING PULLEY |
60L 075-6W |
SPROCKET |
RS120x20T |
|
TIMING BELT |
337L 075 |
SPROCKET |
RS120x10T |
|
SPROCKET |
#RS60 X 14NT |
CHAIN |
RS #120-2열 |
|
CROSS HEAD
PART |
MOTOR |
AC 0.4KW |
AC 0.75KW |
|
REDUCER |
SI - S60R - 1/60 |
DWBM120-A-1/300 |
|
FEEDING |
PINION GEAR |
2.5M X 21NT |
PINION GEAR |
M5x22Z |
|
TIMING PULLEY |
34L 075-6 |
RACK GEAR |
ESFR5-7500 |
|
TIMING PULLEY |
16L 075-6F |
X-AXIS |
DKM9WD 30BLx90W |
|
TIMING BELT |
270L 075 |
Z-AXIS |
DKM9WD 30BLx90W |
|
