SPECIFICATION

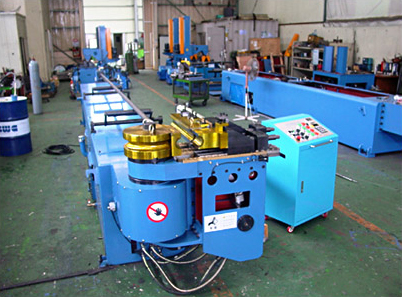

MODEL		SK-BD 65
MAX. TUBE DIAMETER/THK		ø 17.3 ~ ø 76.3
EFFECTIVE TUBE LENGTH		6,000 mm
BENDING	ROTATE	190˚
	SPEED	20˚ / sec
	CENTER	F.L + 870 mm
	RADIUS	MIN : 2.5D, MAX : 3D
	FORMER	1-STEP
PRESSURE DIE BOOSTER		HYDRAULIC
HYDRAULIC PUMP		7.5 kw
AMOUNT HYDRAULIC OIL		200 LITER
CONTROL		1 CYCLE AUTO (SEMI)
TOTAL ELECTRIC POWER		7.5 kw
MACHINE	LENGTH	6,700 mm
	HEIGHT	1,200 mm
	WIDTH	1,250 mm
	WEIGHT	4,300 kg
