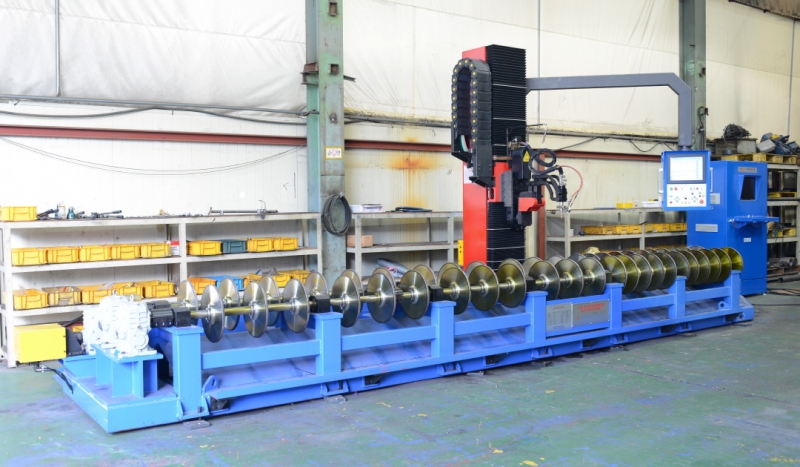

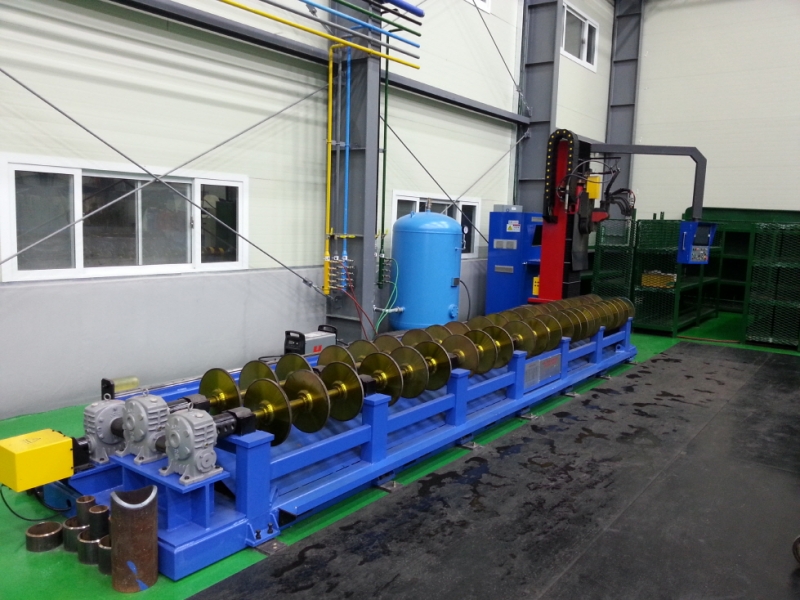

제 목 : SK-COS5-800A(LINK HEAD)
|
|
|
SPECIFICATION
| MODEL |
SK-COS5- 600/800/1000 |
| MIN. PIPE DIAMETER |
65A |
| MAX. PIPE DIAMETER |
600A / 800A / 1000A |
| MAX. PIPE WEIGHT |
MAX. 2000KG |
| EFFECTIVE PIPE LENGTH |
MAX. 6000mm |
| CUTTING PROCESS |
OXYGEN & PLASMA |
| AIR PRESSURE |
5KG/㎠ |
| TABLE HEIGHT |
F.L + 770mm |
CUTTING
THICKNESS |
STEEL |
MAX. 20mm |
| SUS |
MAX. 10mm |
| ALUMINUM |
MAX. 7mm |

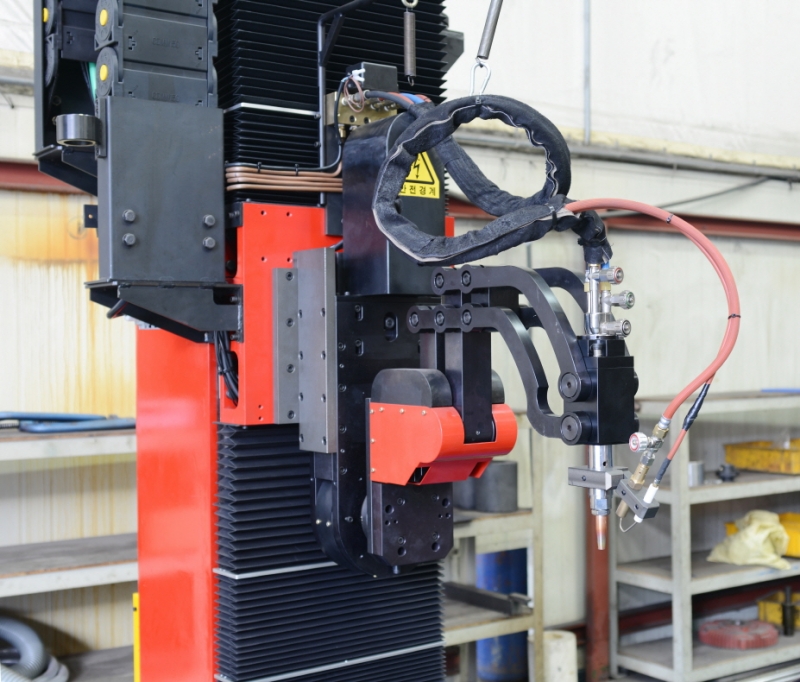

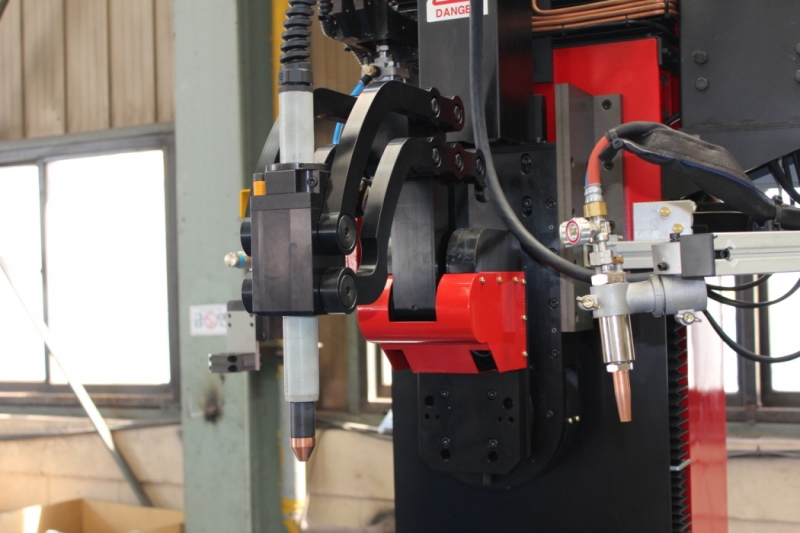

TORCH BEVEL
ANGLE |
ANGLE |
-45° ~ +45° (65) |
| ANGLE CONTROL |
AUTO & MANUAL |
| DRIVING |
AC SERVO MOTOR |
TORCH
UP-DOWN |
STROKE |
MAX. 1095mm |
| SPEED |
MAX. 50mm |
| DRIVING |
AC SERVO MOTOR |
| CARRIAGE |
TRAVEL STROKE |
MAX. 6300mm |
| TRAVEL SPEED |
MAX. 6M/min |
| DRIVING |
AC SERVO MOTOR |

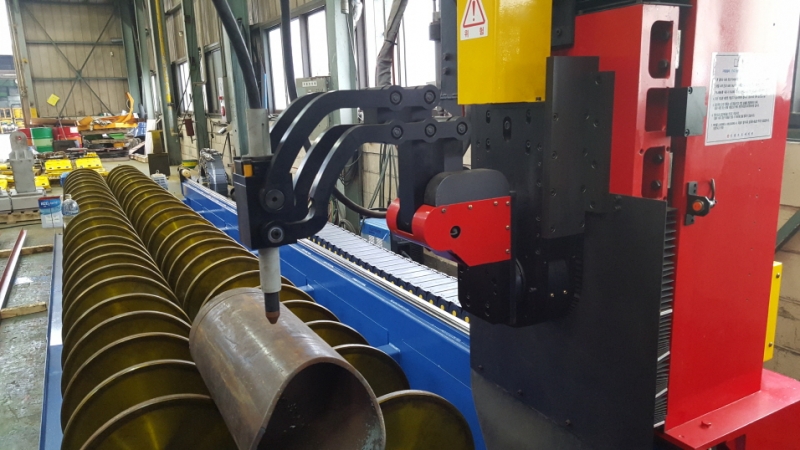

TURNING
ROLLER |
ROLLER DIA |
Ø375 |
| DRIVING |
AC SERVO MOTOR |
| HI-LOW SENSOR |
LASER SENSOR / DISTANCE : 100~140(mm)
ACCURACY : ±0.5 |
| POWER SOURCE |
220V × Ø3 × 60Hz |
| TOTAL ELECTRIC POWER |
4KW(EXCEPT PLASMA) |
| MACHINE WIDTH |
1702mm |
| MACHINE HEIGHT |
2050mm |
| MACHINE LENGTH |
7514mm |
| MACHINE WEIGHT |
4300kg |
|
|
