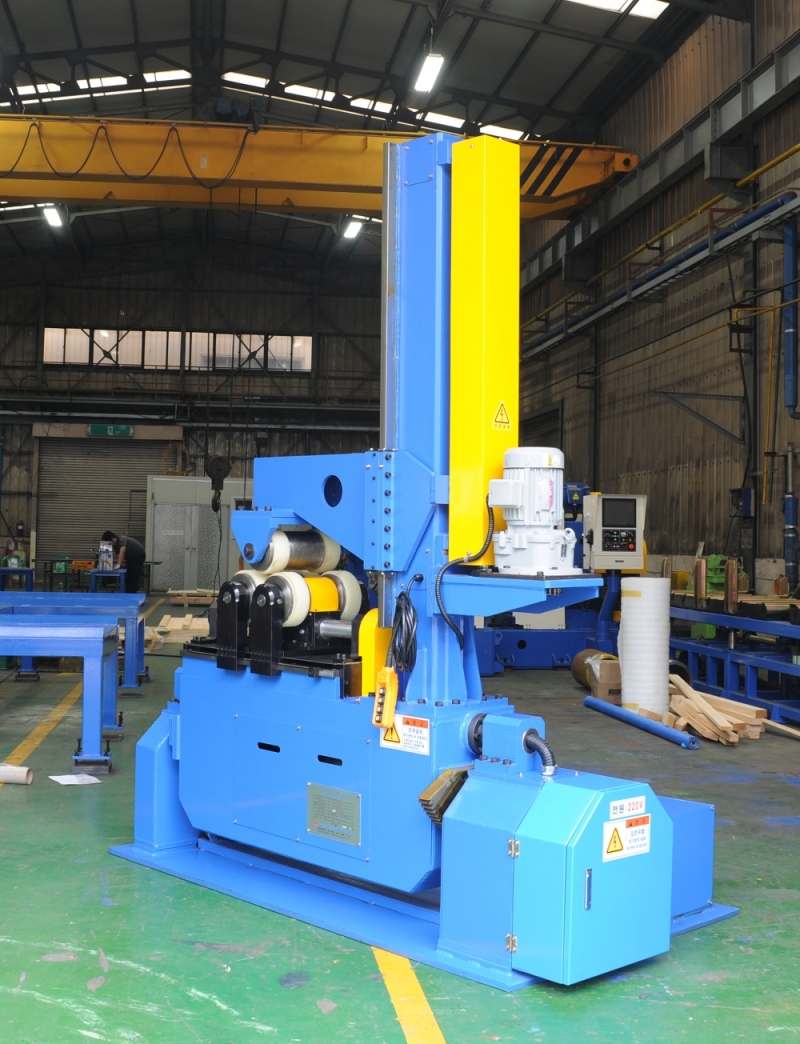

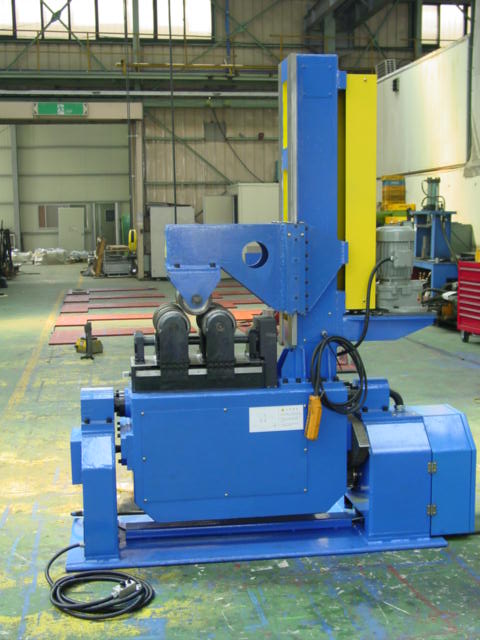

제 목 : SK-ROT 300/600/1000A (실용신안 의장등록품)
|
|
|
SPECIFICATION
당사에서 생산중인 WORM TYPE ROTAOR는 실용신안 의장등록이 되어있습니다.
| MODEL |
SK-ROT 300N |
|
Load Pipe |
25A ~ 300A |
| Capacity |
1000KG |
| Roll Size |
Ø140 × 180L |
| Turning Speed |
0~1635mm/Min |
| Tilting Angle |
±45° |
| Control System |
Main panel & Emergency Switch
Foot Switch |
| Safety Device |
Tilting Safety Pin Fitting |
Tilting Worm Reducer
Protection |
Worm Reducer Shaft Fitting(Bush Type) |
| Turning Roll Bearing |
Assemble a Bearing Cover |
| Motor |
Lifting |
0.75kw |
| Turning |
0.75kw |
| Tilting |
0.75kw |
| Measurement |
Length |
1540mm |
| Height |
1825mm |
| Width |
1080mm |
| Weight |
1200kg |
| MODEL |
SK-ROT 600N |
|
Load Pipe |
50A ~ 600A |
| Capacity |
2000KG |
| Roll Size |
Ø150 × 210L |
| Turning Speed |
0~1300mm/Min |
| Tilting Angle |
±50° |
| Control System |
Main panel & Emergency Switch
Foot Switch |
| Safety Device |
Tilting Safety Pin Fitting |
Tilting Worm Reducer
Protection |
Worm Reducer Shaft Fitting(Bush Type) |
| Turning Roll Bearing |
Assemble a Bearing Cover |
| Motor |
Lifting |
1.5kw |
| Turning |
1.5kw |
| Tilting |
1.5kw |
| Measurement |
Length |
1740mm |
| Height |
2335mm |
| Width |
1120mm |
| Weight |
1500kg |
| MODEL |
SK-ROT 1000N |
|
Load Pipe |
150A ~ 1000A |
| Capacity |
3000KG |
| Roll Size |
Ø150 × 210L |
| Turning Speed |
0~1000mm/Min |
| Tilting Angle |
±50° |
| Control System |
Main panel & Emergency Switch
Foot Switch |
| Safety Device |
Tilting Safety Pin Fitting |
Tilting Worm Reducer
Protection |
Worm Reducer Shaft Fitting(Bush Type) |
| Turning Roll Bearing |
Assemble a Bearing Cover |
| Motor |
Lifting |
1.5kw |
| Turning |
1.5kw |
| Tilting |
1.5kw |
| Measurement |
Length |
1950mm |
| Height |
2570mm |
| Width |
1230mm |
| Weight |
1800kg |
|
|
|
|
