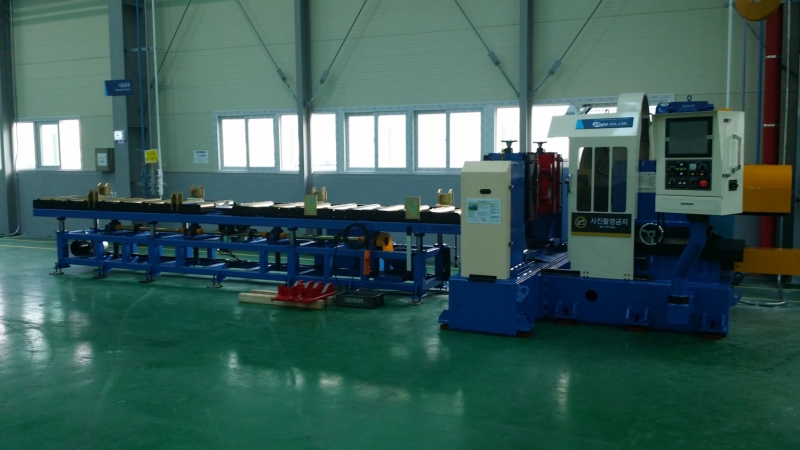

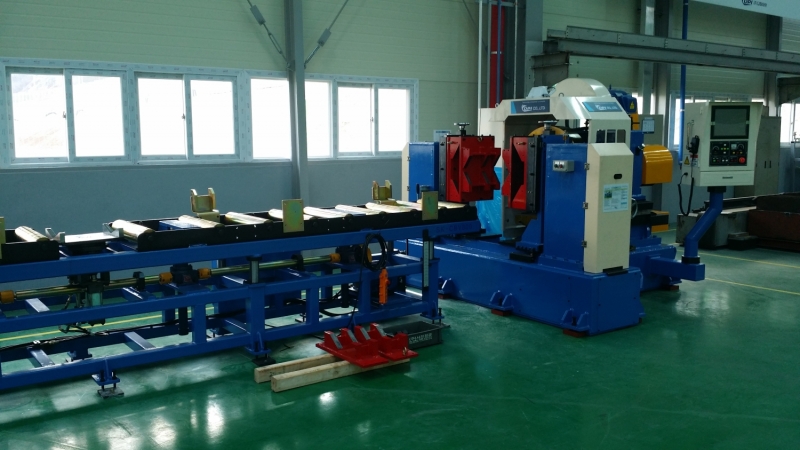

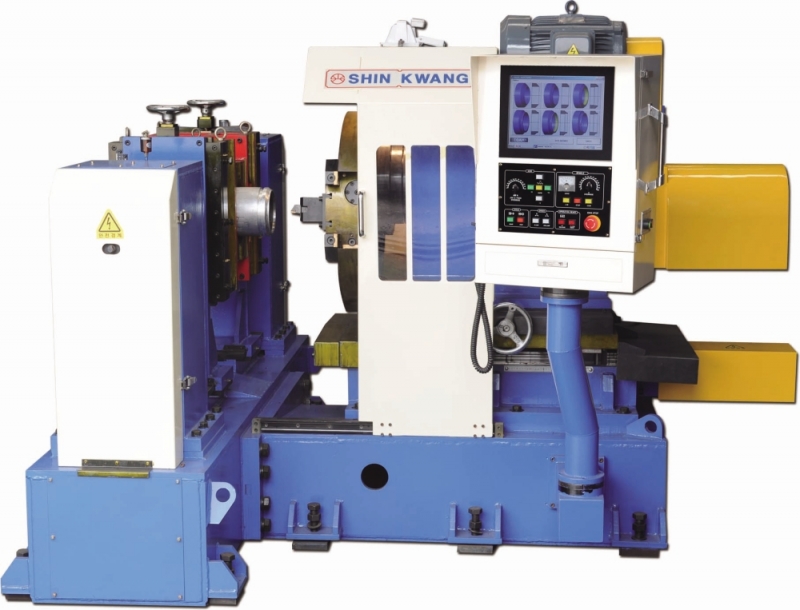

  Á¦  ¸ñ : SK-BV 400/600/800

SPECIFICATION

樨毢樨毢

MODEL SK-BV400

SK-BV600(800)

WORKABLE PIPE DIA ©ª75 ~ 400mm(3"~16") ©ª150 ~ 600mm(6"~24")
PLATE FACE DIAMETER ©ª420mm ©ª600mm(800)
BITE HOLDER FOR BEVELING/FACING 3EA 3EA
SPINDLE RPM 40~200RPM 40~200RPM
SPINDLE MOTOR CAPACITY 5.5KW 7.5KW / 11KW
MANUAL FEED 4mm/rev 4mm/rev
VISE CLAMPING RANGE ©ª75~410mm(3"~16") ©ª150 ~ 600mm(6"~24")
CENTERING ADJUST BY MANUAL

¡¾5mm, 2mm/rev

¡¾5mm, 2mm/rev

SIZE LENGTH 1600mm 2500mm
WIDTH 1250mm 2400mm
HEIGHT 1500mm 2050mm
CENTERING HEIGHT 1500mm 1250mm
NET WEIGHT 5000kg 7000kg
