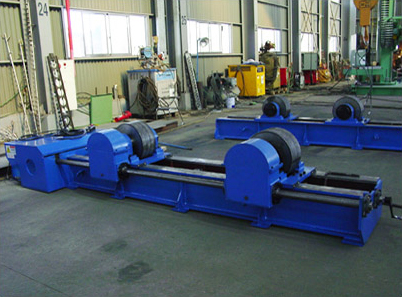

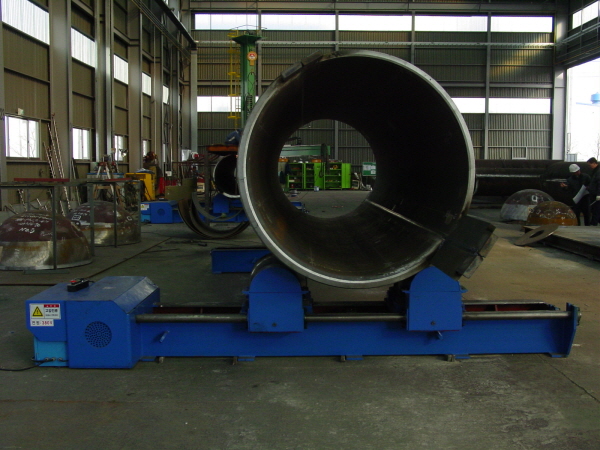

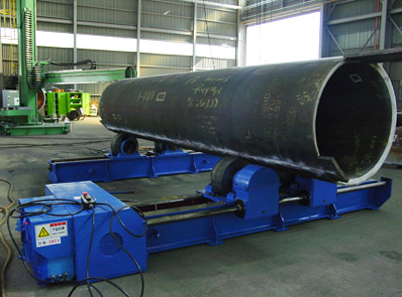

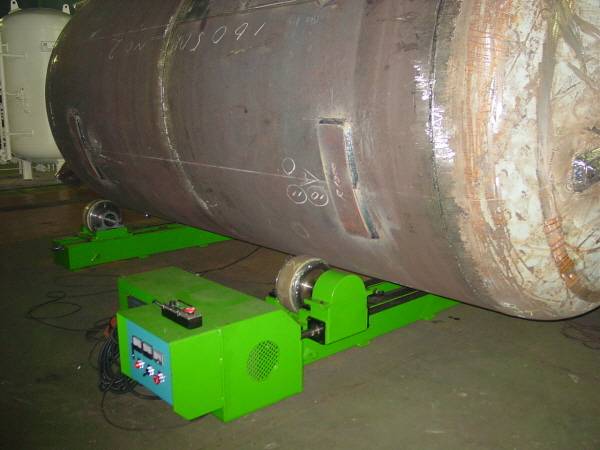

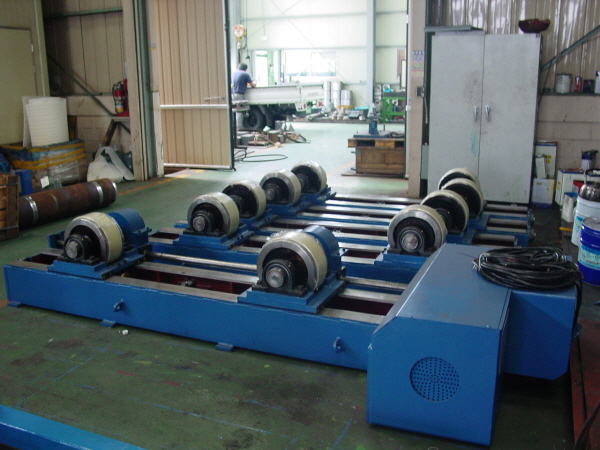

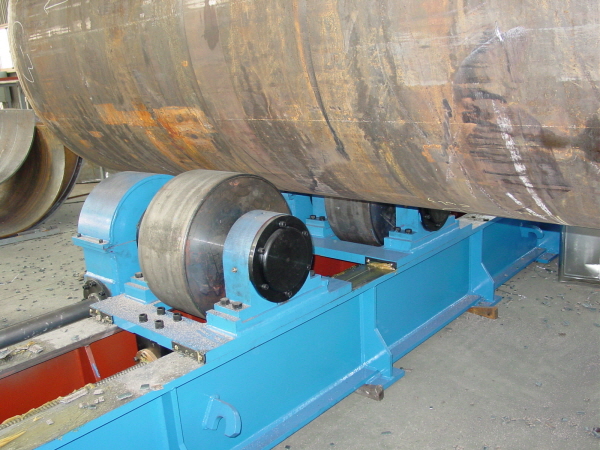

» HOME / 제품소개 / TURNING ROLL




  제  목 : 5~200 TON

SPECIFICATION
▶ SPECIFICATION (5TON)
MODEL SK-TR 5

NOTE

LOADING C/P MAX 5,000KG



TURNING C/P 5,000KG



WELDING SPEED 0.27~1.35RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø100~Ø1000MM



ROLL SIZE

Ø250 X 120W



ELECTRIC SOURCE

220V, 60Hz 3Ø





▶ SPECIFICATION (10TON)
MODEL SK-TR 10

NOTE

LOADING C/P MAX 10,000KG



TURNING C/P 10,000KG



WELDING SPEED 0.27~1.52RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø300~Ø3000MM



ROLL SIZE

Ø300 X 170W



ELECTRIC SOURCE

220V, 60Hz 3Ø



▶ SPECIFICATION (20TON)
MODEL SK-TR 20

NOTE

LOADING C/P MAX 20,000KG



TURNING C/P 20,000KG



WELDING SPEED 0.27~1.35RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø400~Ø3000MM



ROLL SIZE

Ø320 X 120W



ELECTRIC SOURCE

220V, 60Hz 3Ø





▶ SPECIFICATION (30TON)
MODEL SK-TR 30

NOTE

LOADING C/P MAX 30,000KG



TURNING C/P 30,000KG



WELDING SPEED 0.27~1.52RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø400~Ø4000MM



ROLL SIZE

Ø340 X 170W



ELECTRIC SOURCE

220V, 60Hz 3Ø



▶ SPECIFICATION (50TON)
MODEL SK-TR 50

NOTE

LOADING C/P MAX 50,000KG

TURNING C/P 50,000KG

WELDING SPEED 0.27~1.65RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø400~Ø5000MM

ROLL SIZE

Ø400 X 200W

ELECTRIC SOURCE

220V, 60Hz 3Ø

* 터닝롤 50톤용은 ROLL 간격 조절 모터는 옵션사양임.

▶ SPECIFICATION (80TON)
MODEL SK-TR 80

NOTE

LOADING C/P MAX 80,000KG

TURNING C/P 80,000KG

WELDING SPEED 0.27~1.75RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø500~Ø7000MM

ROLL SIZE

Ø420 X 220W

ELECTRIC SOURCE

220V, 60Hz 3Ø

▶ SPECIFICATION (100TON)
MODEL SK-TR 100

NOTE

LOADING C/P MAX 100,000KG



TURNING C/P 100,000KG



WELDING SPEED 0.27~0.8RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø500~Ø8000MM



ROLL SIZE

Ø480 X 220W



ELECTRIC SOURCE

220V, 60Hz 3Ø





▶ SPECIFICATION (150TON)
MODEL SK-TR 150

NOTE

LOADING C/P MAX 150,000KG



TURNING C/P 150,000KG



WELDING SPEED 0.27~0.7RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø900~Ø9000MM



ROLL SIZE

Ø500 X 250W



ELECTRIC SOURCE

220V, 60Hz 3Ø



▶ SPECIFICATION (200TON)
MODEL SK-TR 200

NOTE

LOADING C/P MAX 200,000KG



TURNING C/P 200,000KG



WELDING SPEED 0.27~0.6RPM

AC MOTOR CONTROL

TANK DIAMETER RANGE

Ø1000~Ø1000MM



ROLL SIZE

Ø550 X 280W



ELECTRIC SOURCE

220V, 60Hz 3Ø
