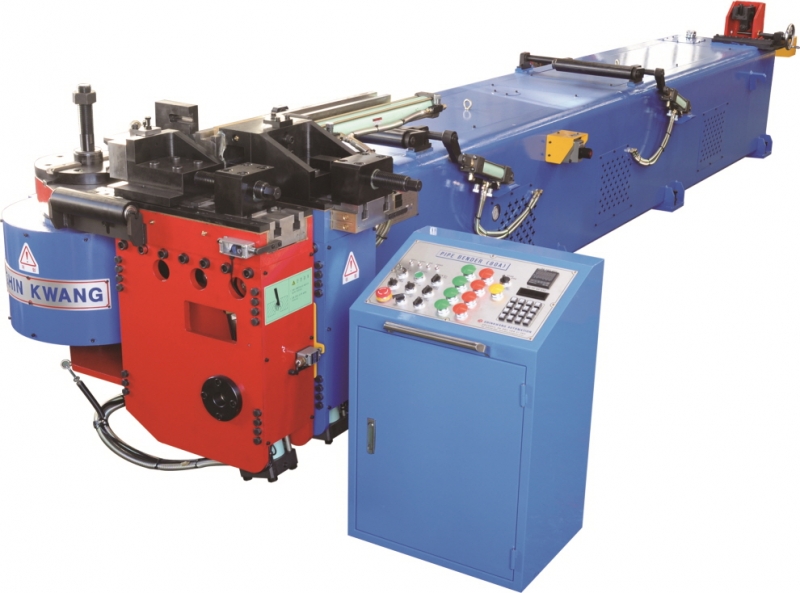

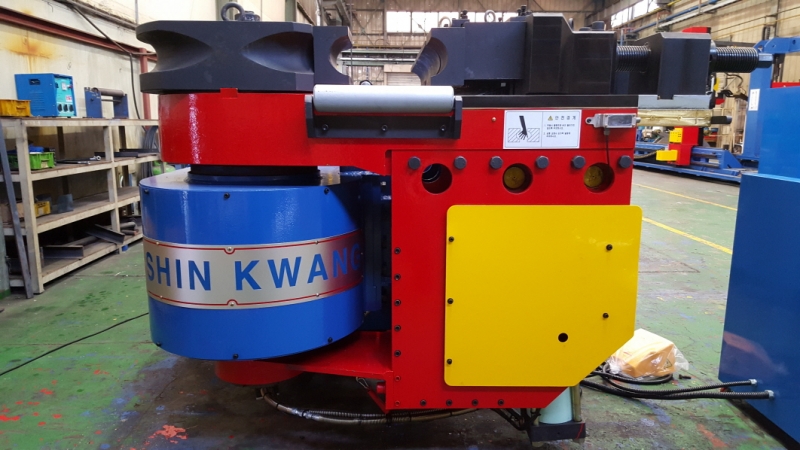

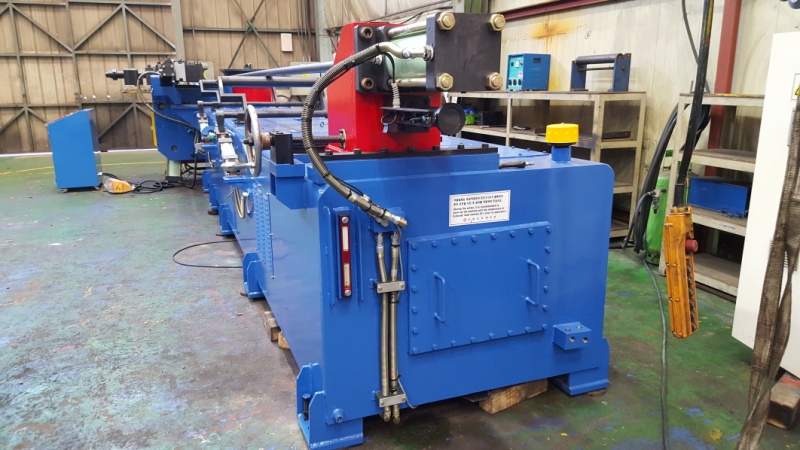

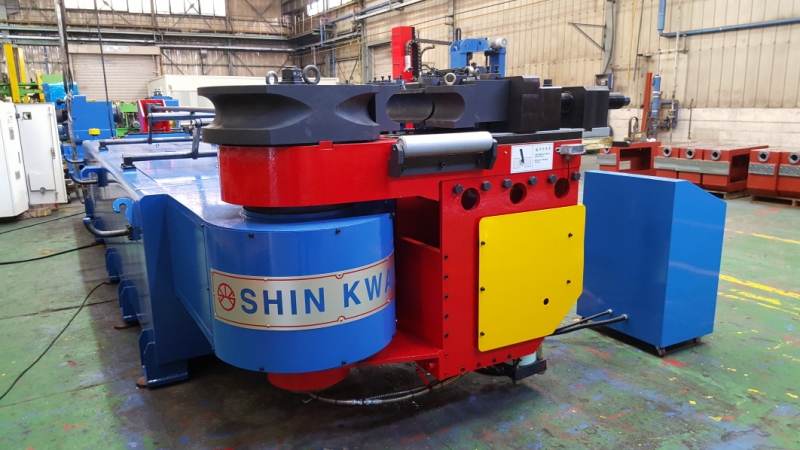

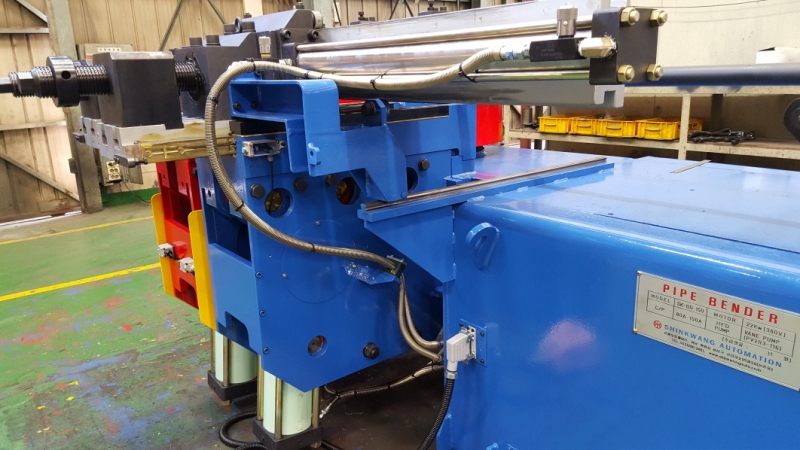

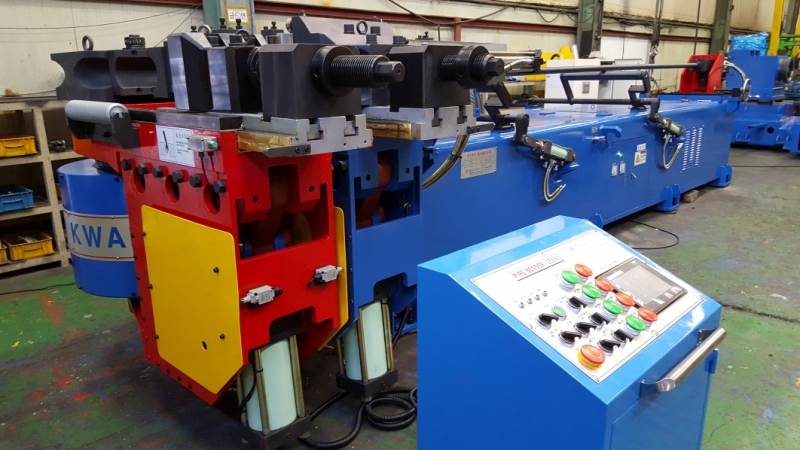

  제  목 : 파이프벤더 SK-BD 100(125)

SPECIFICATION
MODEL SK-BD 100(125)
MAX. TUBE DIAMETER/THK 65A ~ 100A(125A)
EFFECTIVE TUBE LENGTH 6000 mm
BENDING ROTATE 190˚
SPEED 15˚ / sec
CENTER F.L + 1091mm
RADIUS MIN : 2D ~ MAX : 3D
FORMER 1-STEP
PRESSURE DIE BOOSTER HYDRAULIC
HYDRAULIC PUMP MOTOR 15 kw (18.5 kw)
AMOUNT HYDRAULIC OIL 500 LITER
CONTROL 1 CYCLE AUTO (SEMI AUTO)
TOTAL ELECTRIC POWER 18 kw
MACHINE LENGTH 6895 mm
HEIGHT 1316 mm
WIDTH 1325 mm
WEIGHT 6500 kg
