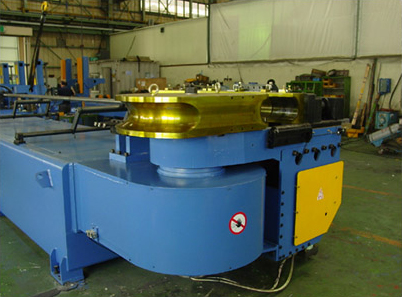

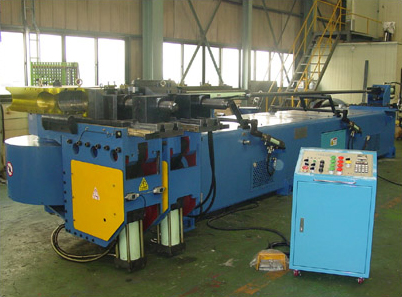

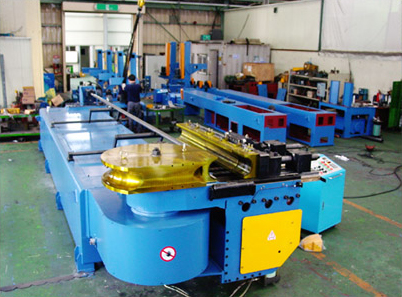

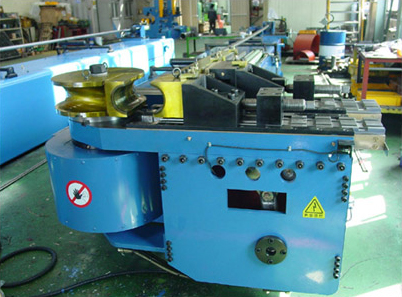

  제  목 : 파이프벤더 SK-BD 150

SPECIFICATION
MODEL SK-BD 150
MAX. TUBE DIAMETER/THK 100A ~ 150A
EFFECTIVE TUBE LENGTH 6000 mm
BENDING ROTATE 190˚
SPEED 7.0˚ / sec
CENTER F.L + 1368 mm
RADIUS MIN : 2D ~ MAX : 3D
FORMER 1-STEP
PRESSURE DIE BOOSTER HYDRAULIC
HYDRAULIC PUMP MOTOR 22 kw
AMOUNT HYDRAULIC OIL 700 LITER
CONTROL 1 CYCLE AUTO (SEMI AUTO)
TOTAL ELECTRIC POWER 25 kw
MACHINE LENGTH 8200 mm
HEIGHT 1570 mm
WIDTH 2785 mm
WEIGHT 11000 kg
