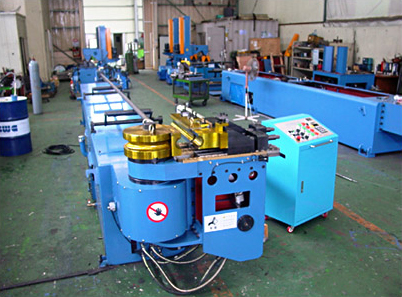

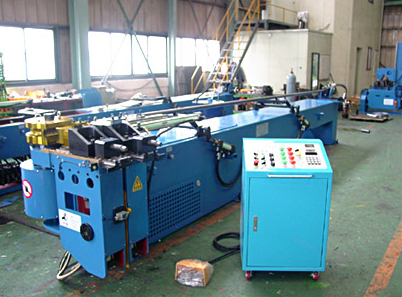

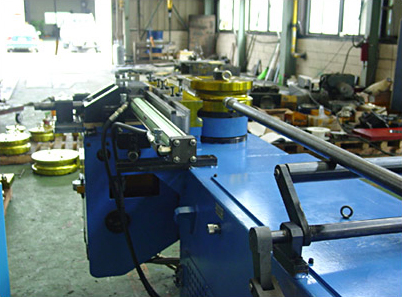

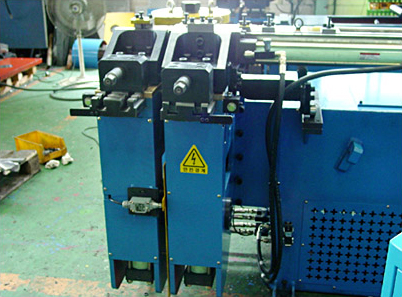

  Á¦  ¸ñ : ÆÄÀÌÇÁº¥´õ SK-BD 65(80)

SPECIFICATION
MODEL SK-BD 65(80)
MAX. TUBE DIAMETER/THK 15A ~ 65A (80A)
EFFECTIVE TUBE LENGTH 6,000 mm
BENDING ROTATE 190¢ª
SPEED 20¢ª / sec
CENTER F.L + 1141 mm
RADIUS MIN : 2D ~ MAX : 3D
FORMER 1-STEP
PRESSURE DIE BOOSTER HYDRAULIC
HYDRAULIC PUMP MOTOR 7.5 kw (11 kw)
AMOUNT HYDRAULIC OIL 400 LITER
CONTROL 1 CYCLE AUTO (SEMI)
TOTAL ELECTRIC POWER 7.5 kw
MACHINE LENGTH 6,700 mm
HEIGHT 1,200 mm
WIDTH 1,250 mm
WEIGHT 4,300 kg
