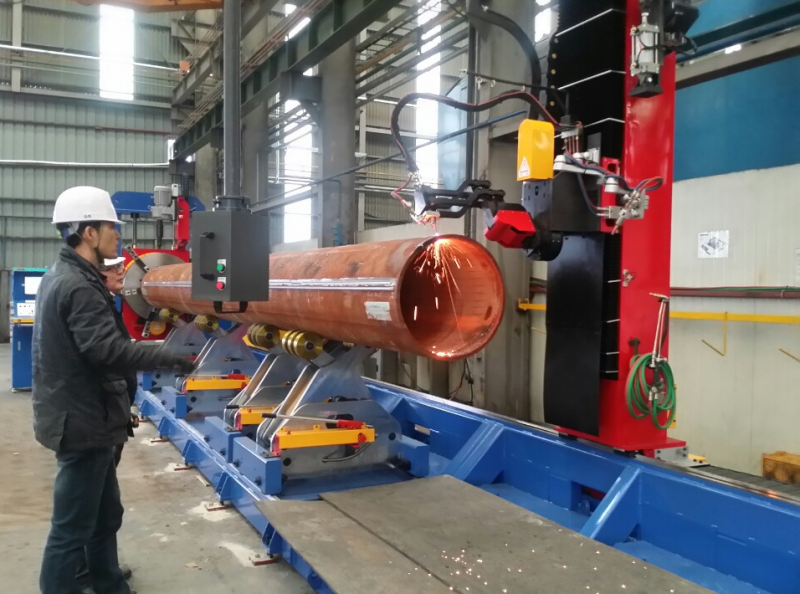

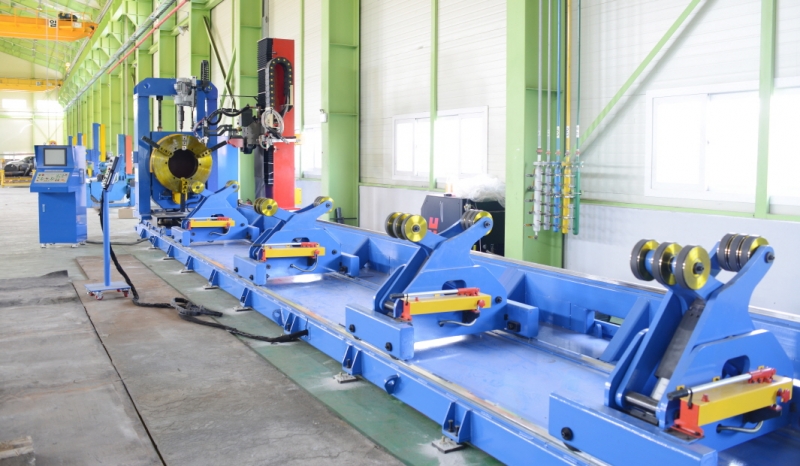

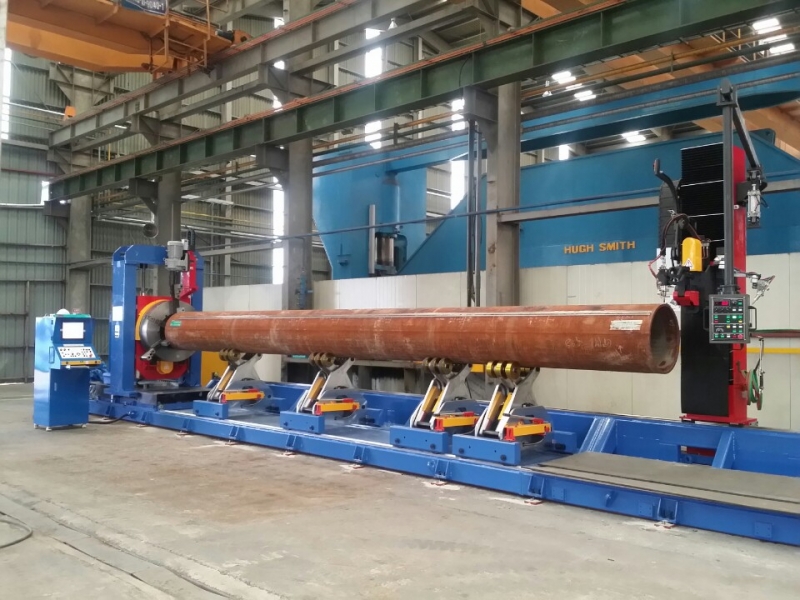

  제  목 : SK-COSC-1500

SPECIFICATION

MODEL

SK-COSC-1500

MIN. PIPE DIAMETER

250A

MAX. PIPE DIAMETER

1500A

MAX. PIPE WEIGHT

MAX. 30,000KG

EFFECTIVE PIPE LENGTH

MAX. 16,000mm

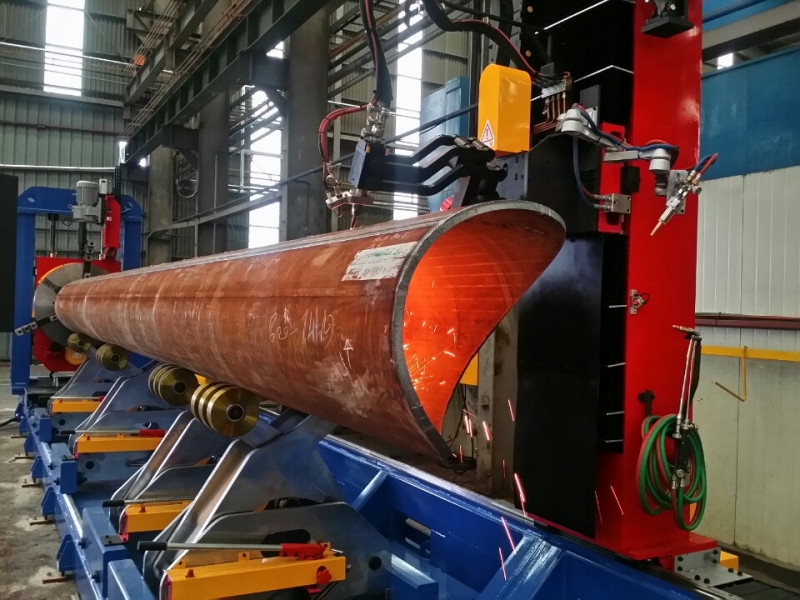

CUTTING PROCESS

OXYGEN (PLASMA : OPTION)

AIR PRESSURE

5KG/

TABLE HEIGHT

F.L +1150mm

CUTTING THICKNESS

STEEL

OXYGEN

MAX. 100mm

PLASMA

MAX. 40mm (200A 기준):OPTION

TORCH BEVEL
ANGLE

ANGLE

-70˚~+70˚

ANGLE CONTROL

AUTO & MANUAL

DRIVING

AC SERVO MOTOR

TORCH
UP-DOWN

STROKE

MAX. 850mm

SPEED

MAX. 1000mm/min

DRIVING

AC SERVO MOTOR

CARRIAGE

TRAVEL STROKE

MAX. 16,300mm

TRAVEL SPEED

MAX. 6000mm/min

DRIVING

AC SERVO MOTOR

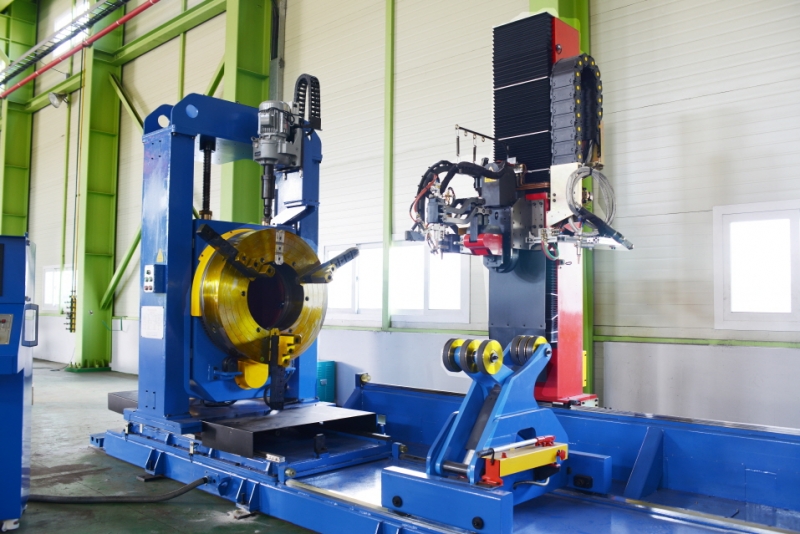

HEADSTOCK
(CHUCK)

MOVING

AUTO & MANUAL

SPEED

0.5~6 RPM

CENTRING

MANUAL

CHUCKING DIA.

1500A

CHUCK UP/DOWN

AIR CYLINDER(Φ50 x 100ST)

CHUCK CLAMPING

AC MOTOR

POWER SOURCE(기계측)

220V x Φ3 x 60Hz

TOTAL ELECTRIC POWER

15KW(EXCEPT PLASMA)

SIZE (WxHxL)

2950x3550x18640(MM)

MACHINE WEIGHT

21,000kg
