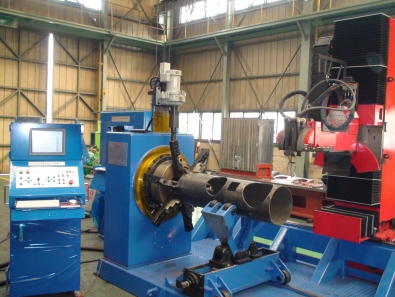

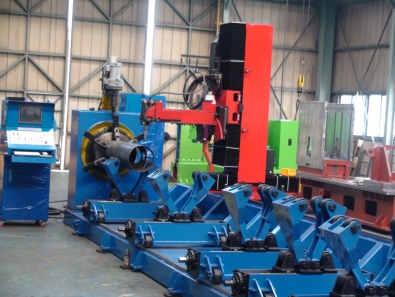

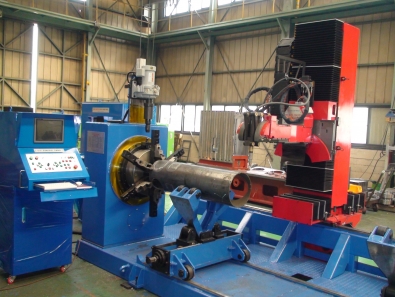

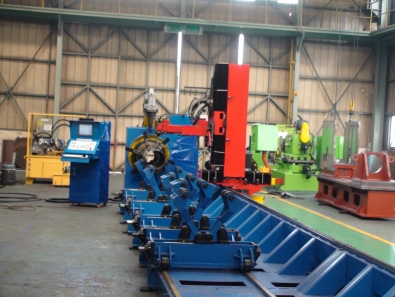

[5shaft_CHUCK_TYPE] SK-COS5-800A
   SK0712-CPC0001_Model_(1).pdf (597.1K) [34] DATE : 2009-11-03 14:50:32

SPECIFICATION
MODEL SK-COS5-800 (Chuck Type)
WORK 50A~800A PIPE
M/C LAYOUT 9161W x 2430 x 3072H
ELECTRIC

MAIN

220V, 60Hz

CON'

AC 220V / DC 24V
CONTROL METHOD NC CONTROL SYSTEM
"Z"ST 450ST

"X"ST

120ST

"Y"ST

135ST

FEEDING UNIT

"Z"UNIT

"X"UNIT

SAMYANG

SAMYANG

GEARD MOTOR

GEARD MOTOR

4P, 1/30, 60rpm

4P, 1/30, 60rpm

2.2Kw

1.5Kw

SCREW : 60

SCREW : 55

STROKE : 450

STROKE : 120

UNIT

ROTATE(SPINDLE)

"Y"UNIT

WTMH

SAMYANG

AC SERVO MOTOR

GEARD MOTOR

3.3 rpm, 1/600

4p, 1/30,60rpm

3Kw

1.5Kw

15" CHUCK

STROKE : 135
