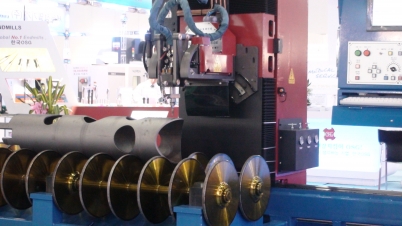

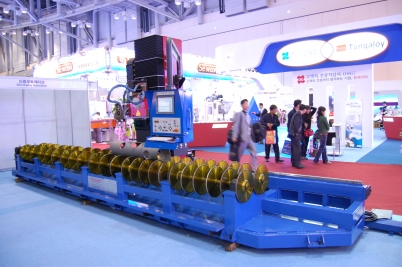

[5shaft_TURNING_ROLL_TYPE] SK-COS5-800A(LINK HEAD)

SPECIFICATION
MODEL SK-COS5-800N
MIN. PIPE DIAMETER 80A
MAX. PIPE DIAMETER 800A
MAX. PIPE WEIGHT MAX. 2000KG
EFFECTIVE PIPE LENGTH MAX. 6000mm
CUTTING PROCESS OXYGEN & PLASMA
AIR PRESSURE 5KG/㎠
TABLE HEIGHT F.L + 770mm
CUTTING
THICKNESS
STEEL MAX. 20mm
SUS MAX. 10mm
ALUMINUM MAX. 7mm
TORCH BEVEL
ANGLE
ANGLE

-45° ~ +45°

ANGLE CONTROL AUTO & MANUAL
DRIVING AC SERVO MOTOR

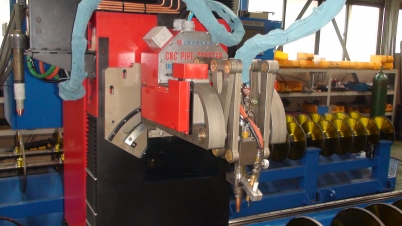

TORCH
UP-DOWN
STROKE MAX. 1095mm
SPEED MAX. 50mm
DRIVING AC SERVO MOTOR
CARRIAGE TRAVEL STROKE MAX. 6300mm
TRAVEL SPEED MAX. 6M/min
DRIVING AC SERVO MOTOR
TURNING
ROLLER
ROLLER DIA Ø375
DRIVING AC SERVO MOTOR
HI-LOW SENSOR LASER SENSOR / DISTANCE : 100~140(mm)
ACCURACY : ±0.5
POWER SOURCE

220V × Ø3 × 60Hz

TOTAL ELECTRIC POWER 4KW(EXCEPT PLASMA)
MACHINE WIDTH 1702mm
MACHINE HEIGHT 2050mm
MACHINE LENGTH 7514mm
MACHINE WEIGHT 4300kg
