  · BENDER :  INDUCTION BENDER 300A / 600A

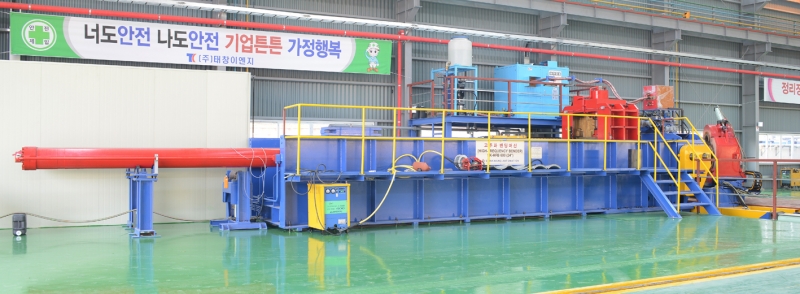

[BENDER] INDUCTION BENDER 300A / 600A

SPECIFICATION

Products characteristic

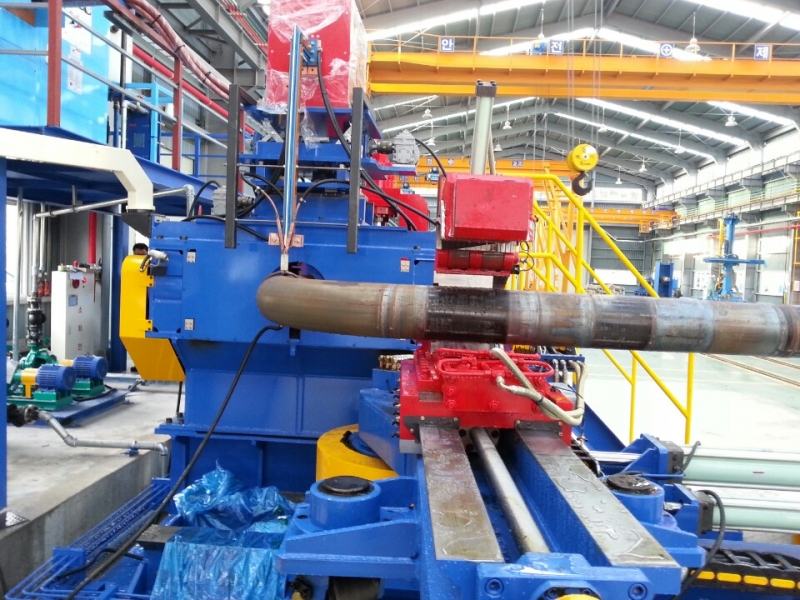

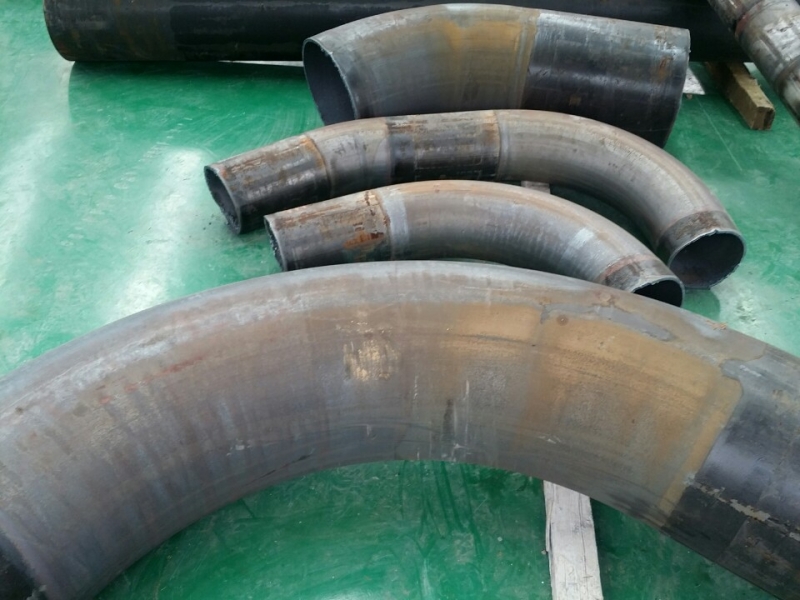

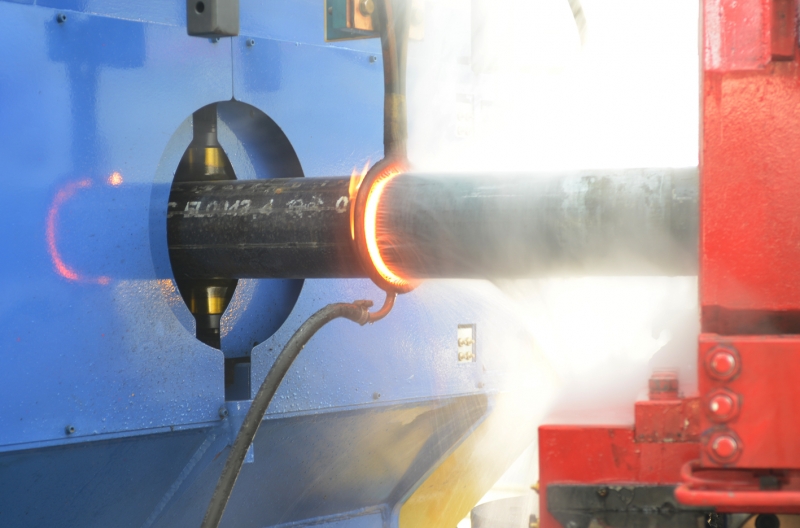

It is an equipment that fixes the pipe to a body of revolution at a wanted R value by applying heat using an inductive heating apparatus and pushes the product and bends at a wanted R value using water when heat zone is passed.

Machine characteristic

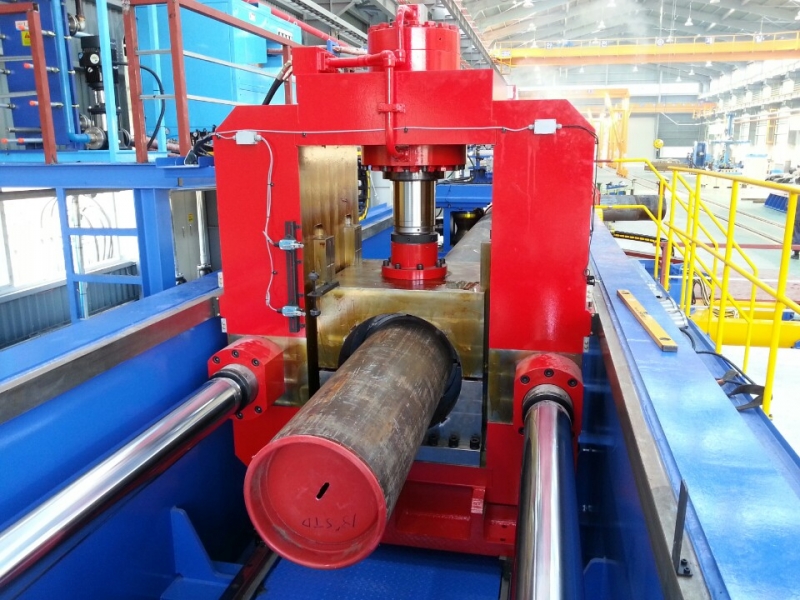

- A system that remarkably reduces the thickness and the elliptical reduction rate of the hydraulic back booster in order to prevent the reduction of thickness and the ellipse that occurs when bending.

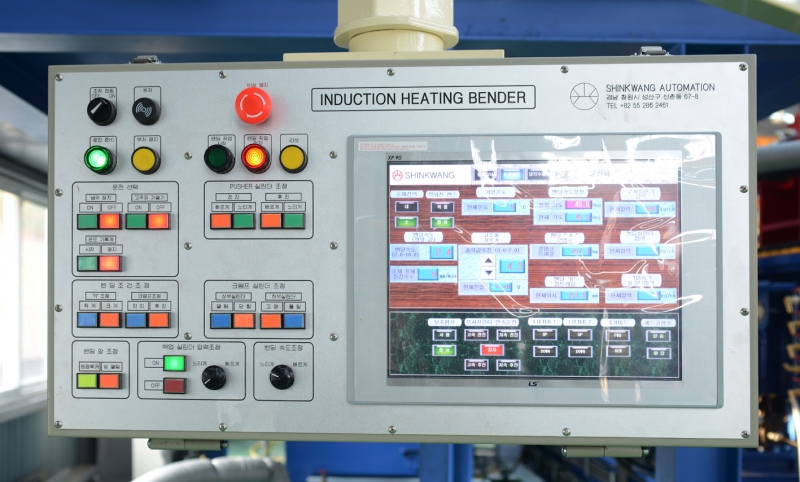

- The control of equipment is easy thanks to the fact that the temperature, bending speed, oil pressure and the bending angle of the flow apparatus are digitalized.

MODEL

SK-HFB 300

SK-HFB 600

Max. Pipe Dia.

4"~12"(100A~300A)

10"~24"(250A~600A)

Pipe Length

6,000mm (12,000mm : OPTION)

Bending

Rotate

90˚ / 180˚

Speed

12~120mm/min

12~60mm/min

Wall Thickness

3.2mm~40mm

8mm~70mm

Center

F.L +1,500mm

F.L +1,500mm

Radius

1.5DR ~ 5DR (5DR ~ 10DR : OPTION)

Cylinder Stroke

6,000mm (12,000mm : OPTION)

Feeding Speed

2,000mm/min

Guide Roller Control

Electric Control

Bending Arm Control

Electric Control

Cooling System

Cooling Pump

3.7Kw x 3

5.5Kw x 3

Cooling Tower

20RT x 2

40RT x 2

High Frequency
Equipment

Power Source

3Φ x 440V x 60Hz

Power Control

PHASE(3Φ) CONTROL TYPE

High-Freq.

200KW

400KW

Total Electric Power

300KVA

500KVA

Cooling Water (ℓ/Min)

400ℓ/Min

500ℓ/Min

Wall Thinning Rate

Deg.

Up to 90˚

3.0DR

Max.12.5%

5.0DR

Max.10%

Hydraulic Unit

Hydro Motor

22Kw x 4P x 380V

32Kw x 4P x 380V

15Kw x 4P x 380V

22Kw x 4P x 380V

Oil Tank

1,200L

2,000L

Measurement

LxHxW

12,400 x 3,130 x 5,050mm

15,950 x 3,730 x 7,730mm

Weight

45,000kg

70,000kg
