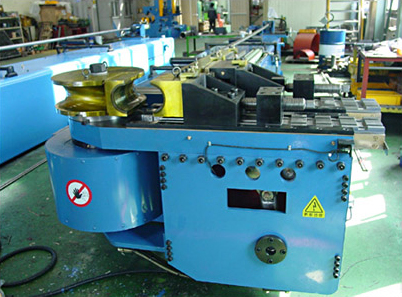

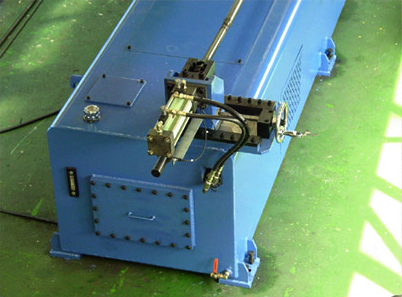

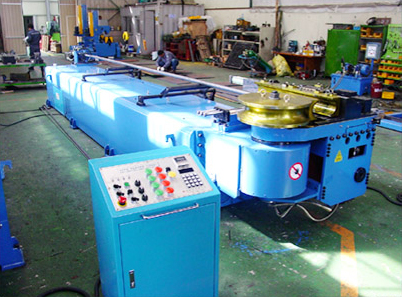

[BENDER] PIPE BENDER(SK-BD 100)

SPECIFICATION
MODEL SK-BD 100
MAX. TUBE DIAMETER/THK ø 48.6 ~ ø 114.3/8.6t
EFFECTIVE TUBE LENGTH 6000 mm
BENDING ROTATE 190˚
SPEED 15˚ / sec
CENTER F.L + 973 mm
RADIUS MIN : 2.5D, MAX : 3D
FORMER 1-STEP
PRESSURE DIE BOOSTER HYDRAULIC
HYDRAULIC PUMP 15 kw
AMOUNT HYDRAULIC OIL 500 LITER

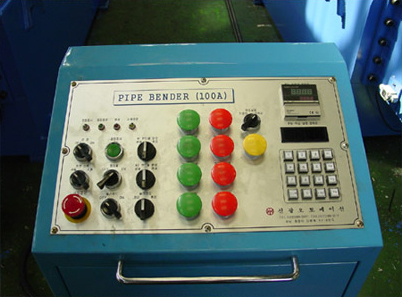

CONTROL 1 CYCLE AUTO (SEMI AUTO)
TOTAL ELECTRIC POWER 18 kw
MACHINE LENGTH 6895 mm
HEIGHT 1316 mm
WIDTH 1325 mm
WEIGHT 6500 kg
