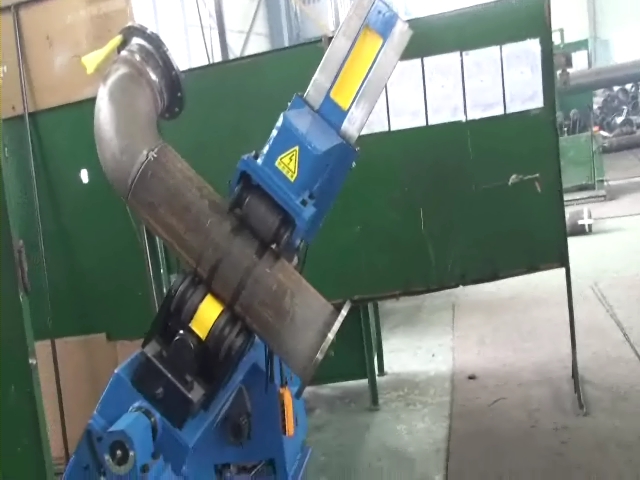

[WORM_TYPE] SK-ROT 600N

SPECIFICATION
MODEL

SK-ROT 600N

Load Pipe

50A ~ 600A
Capacity 2000KG
Roll Size Ø150 × 210L
Turning Speed 0~1300mm/Min
Tilting Angle ±45°
Control System Main panel & Emergency Switch
Foot Switch
Safety Device Tilting Safety Pin Fitting
Tilting Worm Reducer
Protection
Worm Reducer Shaft Fitting(Bush Type)
Turning Roll Bearing Assemble a Bearing Cover
Motor Lifting 1.5kw
Turning

1.5kw

Tilting

1.5kw

Measurement Length 1740mm
Height

2335mm

Width

1120mm

Weight 1500kg
