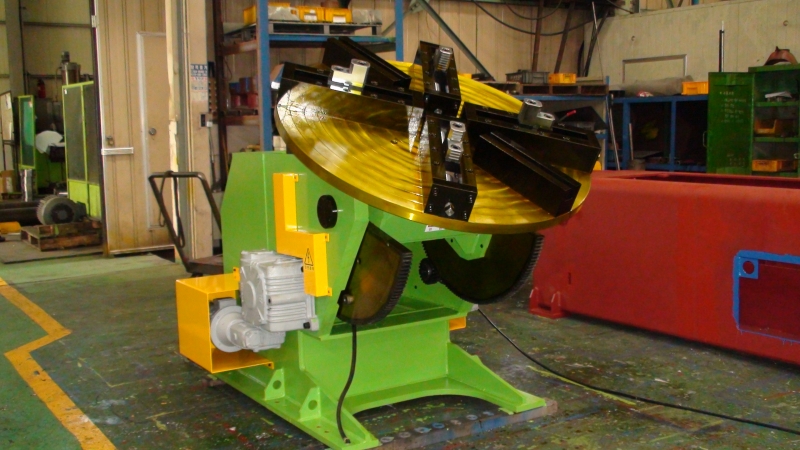

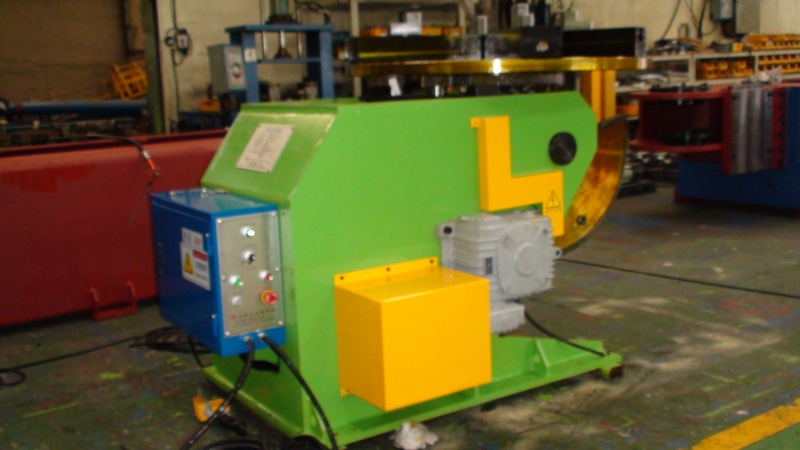

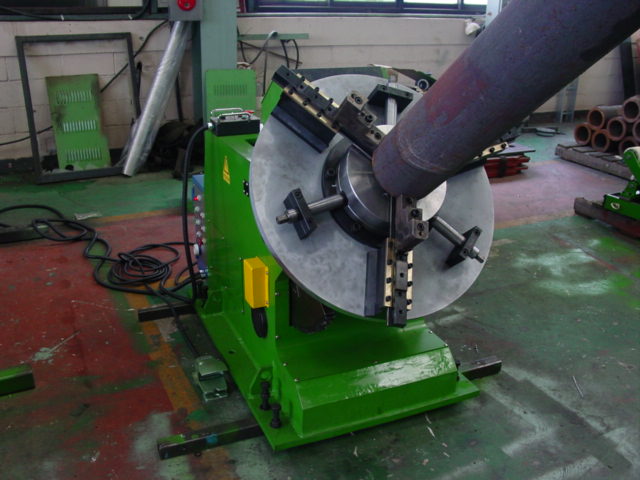

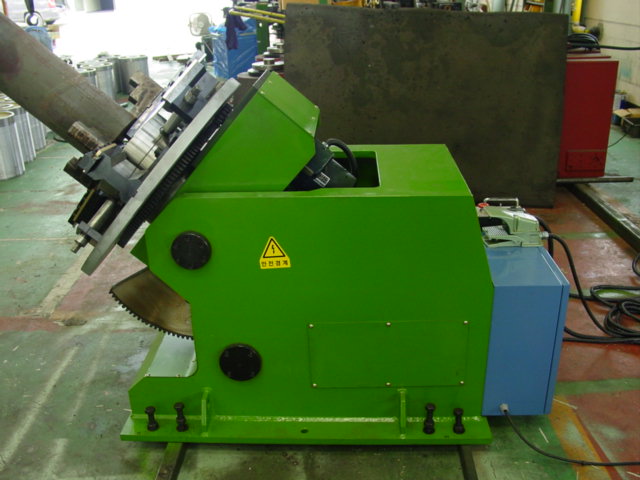

  제  목 : SK-POS-600/1000/1200

SPECIFICATION

MODEL

SK-POS 600

SK-POS 1000

SK-POS 1200

WELDING CAPACITY

125-600A

125-600A

300-1200A

CAPACITY

HOLIZONTAL

600kg

1000kg

2000kg

VERTICAL

500kg

700kg

1200kg

CLAMPING METHOD

MANUAL BY HANDLE

CHUCK

TILTING

METHOD

GEARED MOTOR & WORM REDUCER

ANGLE

MIN. 0° ~ MAX. 135°

SPEED

MAX. 5° / sec

CONTROL

MANUAL

ROTATION
(WELDING)

METHOD

GEARED MOTOR & WORM REDUCER

ANGLE

±360°

SPEED

MAX. 1.12RPM

1.8RPM

SPEED CONTROL

MANUAL BY VOLUME

CONTROL

FOOT & TOGGLE S/W

MOTOR

TILTING

1.5kw

2.2Kw

ROTATION

0.75kw

MACHINE

LENGTH

1,320mm

1,450mm

1,780mm

HEIGHT

1,220mm

1,350mm

1,446.5mm

WIDTH

922mm

1,200mm

1,195mm

WEIGHT

1,000kg

1,500kg

2,500kg
